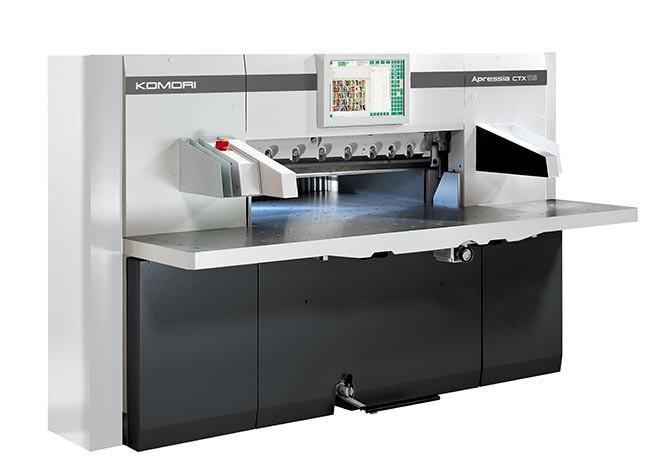

Apressia CTX92

Programmable Hydraulic Clamp Cutting System

Concept

High-end cutting system Apressia CTX can be adopted to KP-Connect and CIP3/CIP4.
Better e ciency through a wide range of options and automation.

The Komori Apressia series of after-processing machines now features a new lineup of high-end cutting systems linked with increasingly automated printing processes.
In addition to the latest safety measures, the Apressia CTX o ers a wide assortment of peripheral equipment and cutting machine options to automate cutting, save labor and increase safety.

When striving for overall optimization of print production, after-processes often become bottlenecked. Apressia CTX links smoothly with Komori's KP-Connect solution cloud and is compatible with CIP3/CIP4, allowing for process and progress management through to after-processes.
Customer solutions are also available to better optimize the cutting process, including peripheral equipment such as joggers and lifters, and options such as AWR (Auto Waste Removal), automatic cutting software and fully automatic paper alignment and conveyance systems.
Additionally, a wide lineup is available including leading CTX115 and CTX132 sizes.

Read More

Features

Model Apressia CTX92 Apressia CTX115 Apressia CTX132 Apressia CTX168
Table width mm 1,580 2,440 2,610 2,935
Depth mm 1,885 2,630 2,800

3,670

(L type 4,200)

Height mm 1,460 1,660 1,815
Weight kg 2,000 3,200 3,410 6,900
Soft clamp load N(kgf) 300 (30.6) 500 (51)
Clamp load N(kgf) 2,000 - 30,000
(204 - 3,059)
2,500 - 45,000
(255 - 4,589)
3,500 - 60,000
(357 - 6,118)
Cutting width mm 920 1,150 1,320 1,680

* Specifications are for exhibit machine.
* Performance and numbers may differ from specifications herein, and specifications may also be modified for product improvements.
