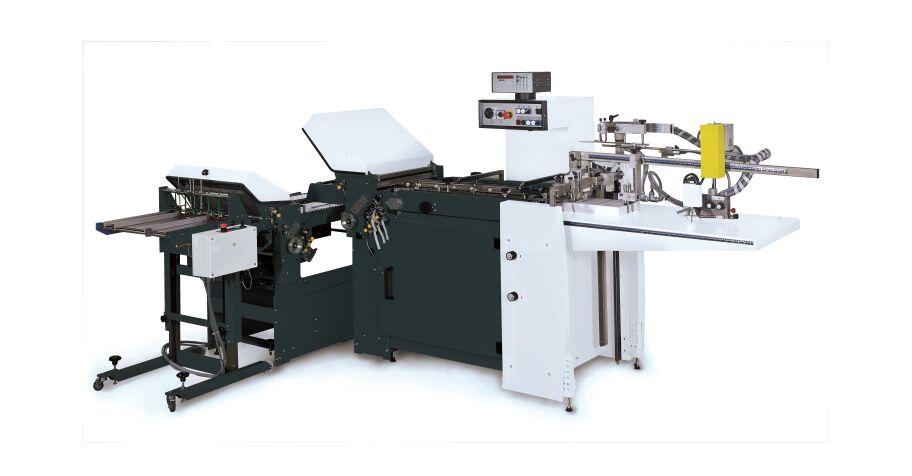

H+H KL112.1

Concept

Folding machine suitable for the production of manuals for medicines and cosmetics

The miniature folding unit KL112.1 is designed for the production of small products, specials and thin papers. Our smallest folder is a real big one.

Designed for the production of small and miniature folded products, special folds, and multi-folding of thin papers, the KL112.1 is the ideal folder for the production of manuals for medicines and cosmetics
Based on a folding roller diameter of 26mm, the folder can realize folding dimensions of 18mm
In combination with a maximum of 24 buckle plates per unit, larger sheets can be folded down to small final formats
Optional glue and tape applications are also available


Model		10/12 buckle configuration	16/20/24 buckle configuration
Max. sheet size (Width × Length)	mm	Pile feeder：510×1,000 Continuous feeder：510×840	Pile feeder：510×1,200 Continuous feeder：510×1,080
Min. sheet size (Width × Length)	mm	Pile feeder：150×150 For small-size configurations, the minimum size is 105×105. Continuous feeder：150×180	Pile feeder：200×200 Continuous feeder：200×250
Min. folding dimension	mm	18
Speed	m/min	160
Number of buckle plates	plates	10、12、16、20、24

* Performance and numbers may differ from specifications herein, and specifications may also be modified for product improvements.
