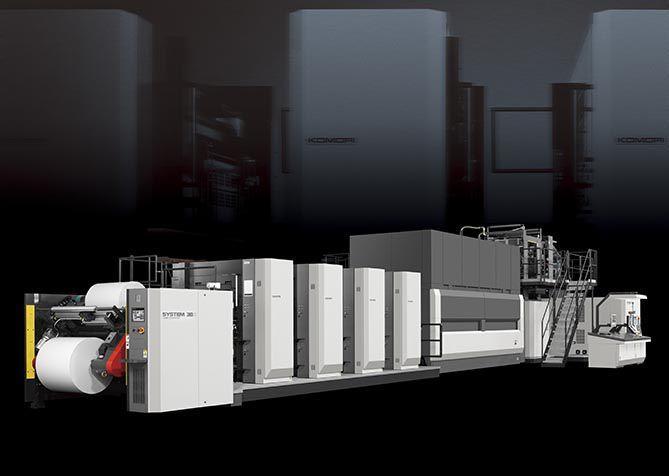

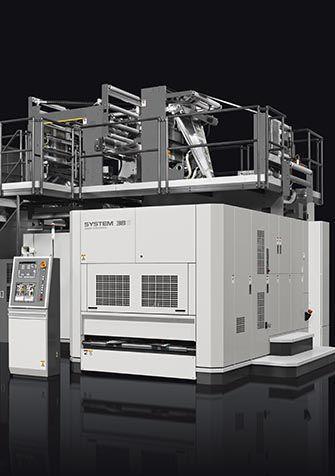

625mm/598.5mm/578mm Cut-Off Sixteen Page Web Offset Press
- World standard in single-size blanket cylinder web capable of consistent, high-quality printing.
- Available in three models, offering cutoff size of 625mm, 578mm or 598.5mm.
- Equipped with Full-APC* for changing all 8 plates in two minutes as well as a range of value-adding folding options to provide the flexibility for meeting all customer needs.
- Equipped with the KHS-AI (Advanced Interface) as standard equipment. The press thus effectively achieves shortened makeready time and a reduction in waste paper. Also, equipping the press with AI-Link* (integrated control system that covers peripheral devices) and Smart Sequence allows for a further reduction in waste paper and shorter makeready time.
- *Optional specification
|Max. web width||mm||965||965||965|
|Max. printing area * (length×width)||mm||617×965||590×965||570×965|
|Plate size (length×width)||mm||649×975||623×975||602×975|
|Paper stock range||gsm||40-130||40-130||40-130|
* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Maximum printing area depends on theoretical values for single colors.
