546mm Cut-Off Sixteen Page Web Offset Press


  • Optimized performance in a single-size blanket-cylinder web design, the System 35S is a powerful solution for a broad work mix. The best-selling web in Japan.

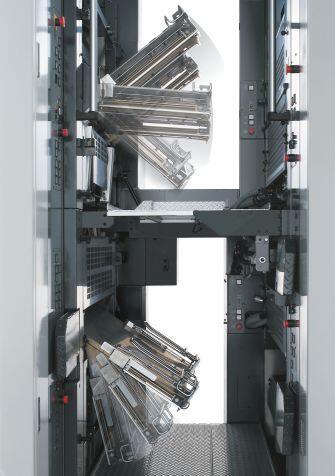

  • Automatic platechanging of all 8 plates in just two minutes when configured with Full-APC*.
  • The B4 x 2P folding unit* (for pin-less, clear-cut sheets) is a new air transport type that raises high-speed stability.
  • Equipped with the KHS-AI (Advanced Interface) as standard equipment. The press thus effectively achieves shortened makeready time and a reduction in waste paper. Also, equipping the press with AI-Link* (integrated control system that covers peripheral devices) and Smart Sequence allows for a further reduction in waste paper and shorter makeready time.
  • *Optional specification
Model SYSTEM 35S
Cutoff mm 546
Max. web width mm 880
Max. printing area * (length×width) mm 538×880
Plate size (length×width) mm 570×900
Paper stock range gsm 40-130

* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Maximum printing area depends on theoretical values for single colors.
