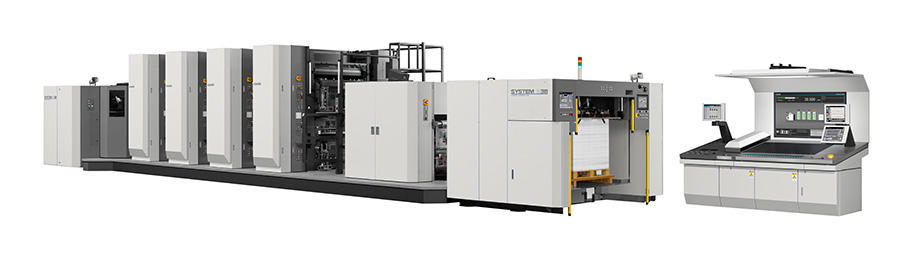

SYSTEM G38

38" Offset Printing Press

Features

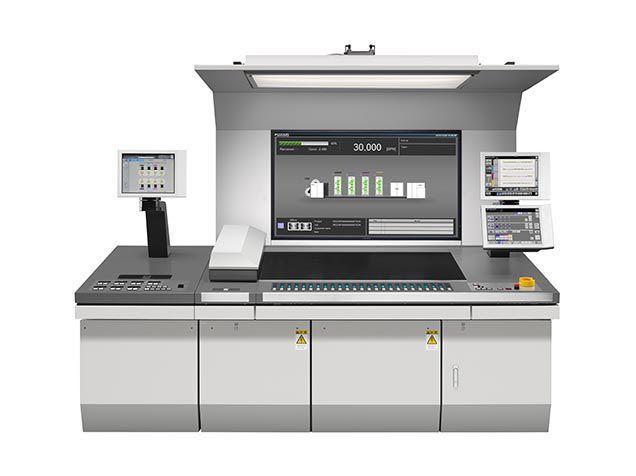

  • Ultimate short makeready performance with the AI-Link integrated control system, Full-APC (Fully Automatic Plate Changer) and the H-UV instant curing system.
  • Configured with the in-line H-UV curing system as standard equipment. It is the solution to a wide range of printing issues. It ensures improved print quality because it is powderless and solves the problem of paper expansion and contraction because a hot-air dryer is not used. In addition, it meets short turnaround needs and lowers the operator’s workload and the environmental impact because total lead time is reduced.
  • Equipped with the latest technologies and systems that simultaneously complete adjustment of register and standard densities to enable printing of webs of paper.
Model SYSTEM G38
Cutoff mm 625
Max. web width mm 965
Max. printing area *(length×width)( mm 617×965
Plate size (length×width) mm 649×975
Paper stock range gsm 40-130

* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Maximum printing area depends on theoretical values for single colors.
