SYSTEM G38
38" Offset Printing Press
Features

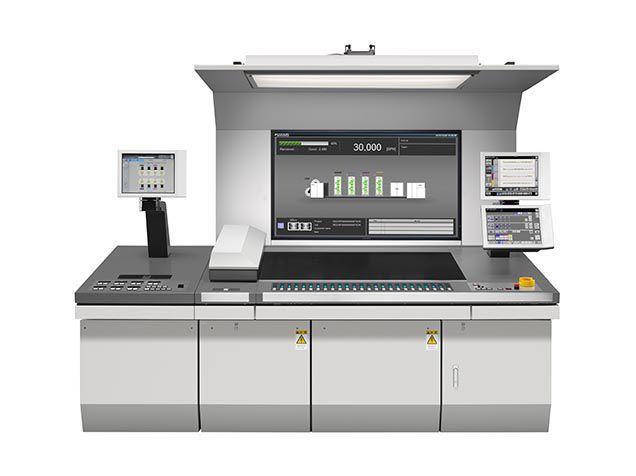

- Ultimate short makeready performance with the AI-Link integrated control system, Full-APC (Fully Automatic Plate Changer) and the H-UV instant curing system.

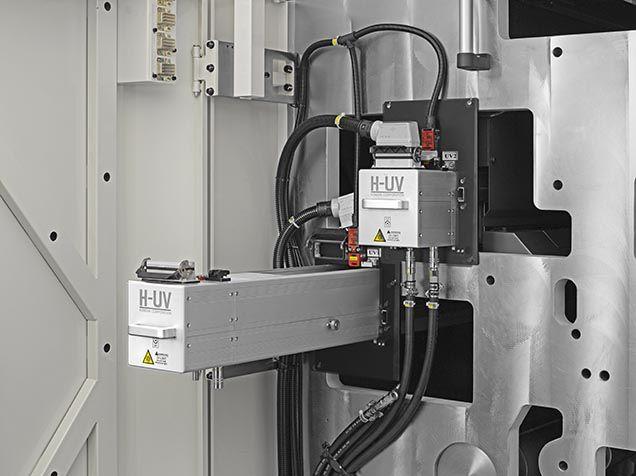

- Configured with the in-line H-UV curing system as standard equipment. It is the solution to a wide range of printing issues. It ensures improved print quality because it is powderless and solves the problem of paper expansion and contraction because a hot-air dryer is not used. In addition, it meets short turnaround needs and lowers the operator’s workload and the environmental impact because total lead time is reduced.
- Equipped with the latest technologies and systems that simultaneously complete adjustment of register and standard densities to enable printing of webs of paper.
| Model | SYSTEM G38 | |
|---|---|---|
| Cutoff | mm | 625 |
| Max. web width | mm | 965 |
| Max. printing area *(length×width)( | mm | 617×965 |
| Plate size (length×width) | mm | 649×975 |
| Paper stock range | gsm | 40-130 |
* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
* Maximum printing area depends on theoretical values for single colors.
