H+H KL112.1
Miniature folding unit
Concept
Folding machine suitable for the production of manuals for medicines and cosmetics
The miniature folding unit KL112.1 is designed for the production of small products, specials and thin papers. Our smallest folder is a real big one.
Features

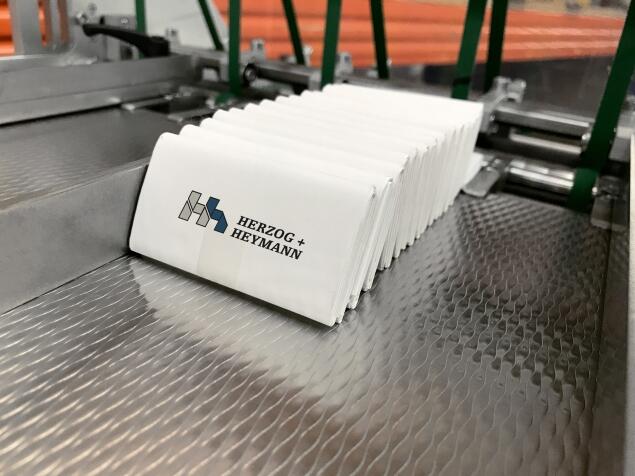

- Designed for the production of small and miniature folded products, special folds, and multi-folding of thin papers, the KL112.1 is the ideal folder for the production of manuals for medicines and cosmetics
- Based on a folding roller diameter of 26mm, the folder can realize folding dimensions of 18mm

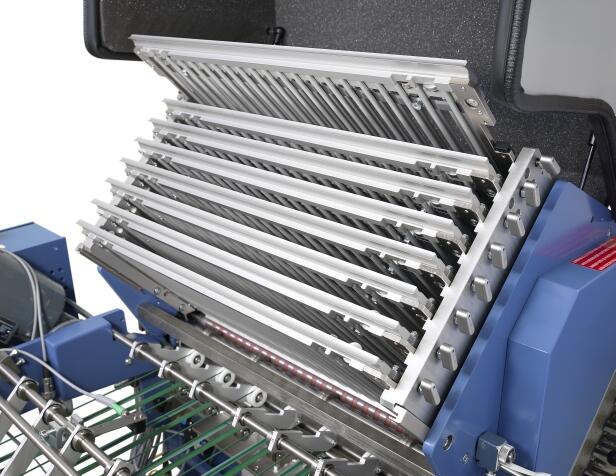

- In combination with a maximum of 24 buckle plates per unit, larger sheets can be folded down to small final formats
- Optional glue and tape applications are also available
| Model | 350ｍｍ | 450ｍｍ | 520ｍｍ | |
|---|---|---|---|---|
| Max. sheet size | mm |
Stream feeder：350x550 |
Stream feeder：450x650 Pile feeder：450x1,000 |
Stream feeder：520x650 Pile feeder：520x1,000 Continuous feeder：520x1,000 |
| Min. sheet size | mm | Stream feeder：40x50 |
Stream feeder：40x50 Pile feeder：80x105 |
Stream feeder：40x50 Pile feeder：80x105 Continuous feeder：150x180 |
| Min. folding dimension | ｍｍ | 18 | ||
| Speed | m/min | 150 | ||
| Number of buckles plates | plates | ２～24 | ||
* Performance and numbers may differ from specifications herein, and specifications may also be modified for product improvements.
