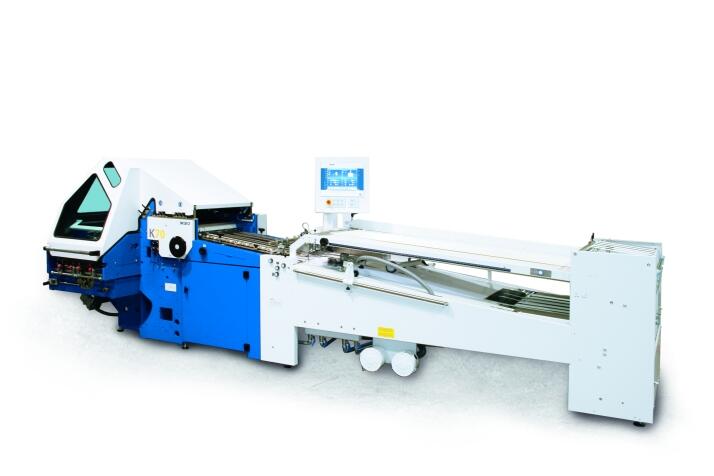

MBO K70

B1 size Combi Folder

Concept

Folder with high folding precision due to high operating speed and robust construction

The MBO K70 is the entry level model. It is available as a manual machine and has an extremely good price/performance ratio. The MBO K70 is suitable for high-precision, high-performance production of folded products such as signatures and flyers in medium and high print run lengths. Even complicated folding impositions can be produced with absolute precision.

Features

Standard features:

    • Machine control M1 Basic with touchscreen
    • Feeder head Vacustar in the pile feeder

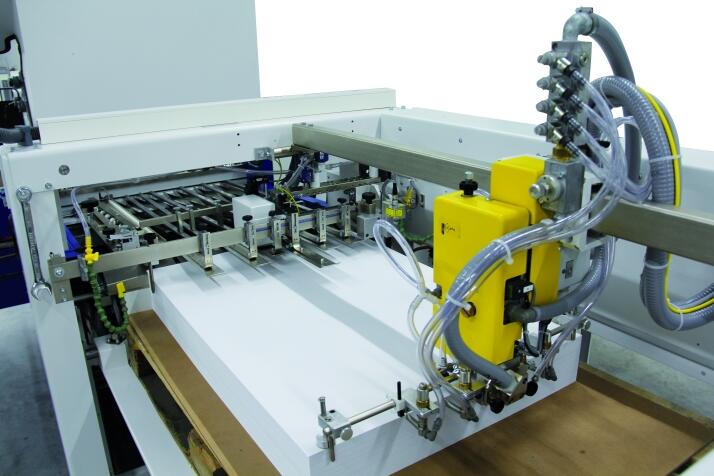

    • Feeder head Vaculift III in the palletized feeder

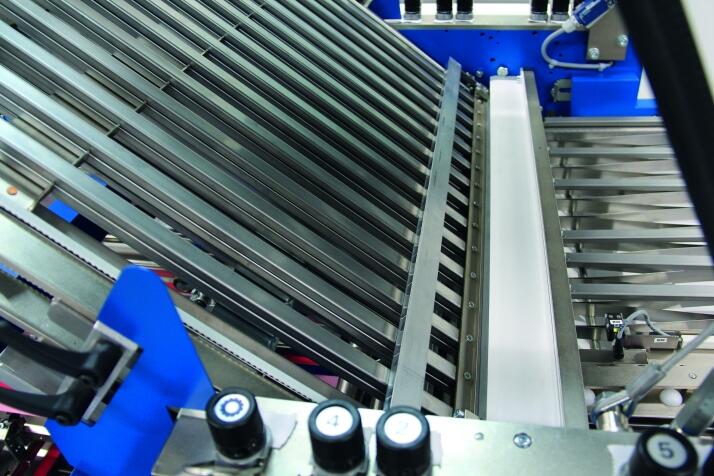

    • Buckle plates with swing deflector
    • Spiral fold rollers with hard PU in the parallel fold


Optional features:

  • MVivas (Vacubelt and Vacutable)
  • Combination buckle plates
  • Gatefold plater
  • Buckle plates with swing deflector
  • Slitter shafts in the three-fold

model MBO K70
Max. sheet size mm

Pile feeder :760x1,200
Palletized feeder:760×1,200

Continuous feeder:760×1,080

Min. sheet size mm Pile feeder :150x200
Palletized feeder:170×250
Continuous feeder:150×180
Sheet thickness (weight) gms 35~250
Speed m/min 210

Number of buckles

plates 4 or 6
Available configurations KL,KTL*

    * Optional specification
    * Performance and numbers may differ from specifications herein, and specifications may also be modified for product improvements.
