MBO T800.1

B1 size Buckle Folder

Concept

Folder with high folding precision due to high operating speed and robust construction

Convenience plays an important role here. The easier the procedures and work processes, the more efficient the production can become. With high output at excellent quality, the T800.1 offers ideal prerequisites for maximising productivity. A wide range of folding types and individualised automation options ensure smooth production for medium and high print runs and frequently changing folding types.

The MBO B30E is the solution for high (standard) print runs and rare changeover – ideally suited for enterprises processing jobs with more or less identical folding types.

Read More

Features

Standard features:

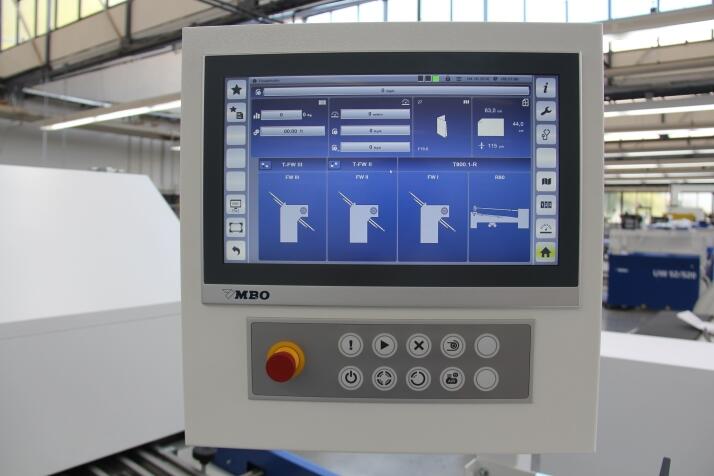

The first folding unit of the T800.1 with machine control M1 Basic is equipped with a touchscreen. The screen diagonal is 10.1“. In addition, the first folding unit is equipped with sheet monitoring by means of optical sensors. Basic functions such as “Start”, “Stop” and “Production” can be carried out at the subsequent folding units with machine control M1 Basic. The speed of the folding units is set manually.


Alternative feature:
The machine control M1 Advanced can be operated from any folding unit. The screen diagonal of the adjustable touchscreen on folding unit I is 15.6” and on the subsequent folding units 10.1”.The operator is optimally supported when setting up a new job. Common standard folding impositions are preconfigured in “Quick Mode”. Every technically possible and sensible variant can be put together in “Expert Mode”.
In addition, optimal sheet gaps and speeds are automatically calculated and set in all folding units. In addition, the machine control M1 Advanced features sheet monitoring across all folding units. This includes sheet length control and sheet-monitoring using sensors.
The control includes a router for the remote access software RAS. The machine control M1 Advanced is also compatible with the Datamanager 4.0, a software package for production planning and analysis. Among other things, Datamanager 4.0 contains a folding imposition catalogue which supports the user during set-up.


model

MBO T800.1

Max. sheet size mm

Palletized feeder:780x1,200
Continuous feeder:780x1,080

Min. sheet size mm

Palletized feeder:200x250(With Vaculift Ⅲ)、250x250(With Vaculift RS)
Continuous feeder:150x180

Sheet thickness (weight) gms 35~250
Speed m/min 230

Number of buckles

plates 4 or 6
Available configurations

Second unit for parallel folding(4 or 6 plates)

Third unit for parallel folding(4 plates)

    * Performance and numbers may differ from specifications herein, and specifications may also be modified for product improvements.
