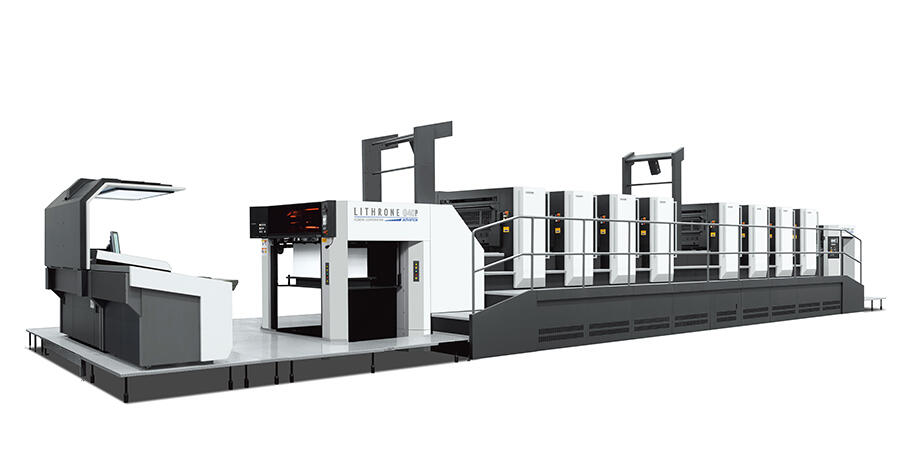

LITHRONE G40P advance
Product image for illustration purposes only. Actual product may vary.
Concept
Lithrone G40P advance EX Edition:
New benchmarks for productivity and sustainability
Boasting a world-class return on investment*1, the Lithrone GX/G advance series is being introduced globally.
To achieve further productivity growth and sustainable management, Komori has developed the Lithrone GX/G advance Series equipped with revolutionary new functions.
By means of three eco-conscious functions*2, the press reduces power consumption by up to 18%*3 while printing and realizes stable feeder and delivery operation to cut wastepaper usage, thus both achieving reduced greenhouse gas emissions and high productivity.
Leveraging the latest printing technology, this latest development from Komori reduces energy costs and enhances operator eciency, propelling businesses to a new heights.
The Lithrone G40P advance delivers high productivity and print quality with easy operation.
Based on the Connected Automation concept, strengthened collaboration and optimization between processes as well as high-level automation with presets based on information from high-end systems are realized, thus contributing to productivity improvement throughout the entire printing process.
*1 ROI (Return on Investment)
*2 Smart Inking Flow, DC blower and e-Mist
*3 Effect of Smart Inking Flow and DC blower together
Features
- Enables high-quality two-sided printing in one pass and straight multicolor printing in one machine.

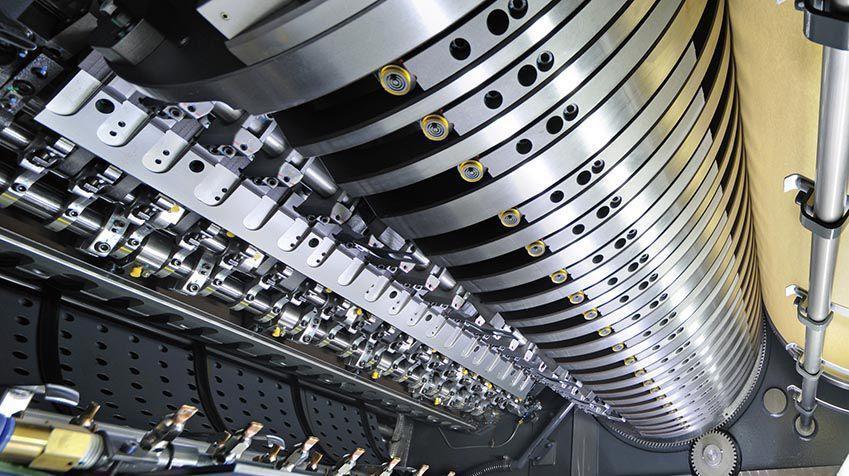

- Equipped with Komori’s own high-performance perfecting mechanism configured by three double-size cylinders. Komori's unique sheet transport system enabled by the stress-free sheet transfer and lower unit air control allows double-sided printing at 15,000 sheets per hour.
- Equipped with the Asynchronous Automatic Plate Changer (A-APC)* for significantly shorter makeready times. Furthermore, the Lithrone G40P advance is also equipped with the H-UV/H-UV L (LED)* system, which enables fast print drying and short turnarounds.
A wide range of other options is also available. - Superb performance with heavy stock in either single-sided or double-sided printing mode means that a variety of stunning high added value printing effects can be obtained with special inks and overprint varnish. The Lithrone G40P advance is a machine of matchless flexibility that addresses a variety of needs at the highest level.
- Updated KID (Komori Information Display) improves operator efficiency.
- *Optional specification
| Model | LITHRONE G40P advance | |
|---|---|---|
| Number of colors | 4-10 | |
| Max. sheet size | mm | 720×1030 |
| Max. printing area | mm | 710×1020 (Single-sided) 700×1020 (Double-sided) |
| Plate size | mm | 800×1030 |
| Feeder pile height | mm | 1,400 |
| Delivery pile height | mm | 1,400 |
* Margin for vacuum wheels on back side of sheet required for double-sided printing.
* Maximum printing speed varies according to printing conditions.
* Performance and numbers may differ from specifications herein. Specifications may also be modified for product improvements.
