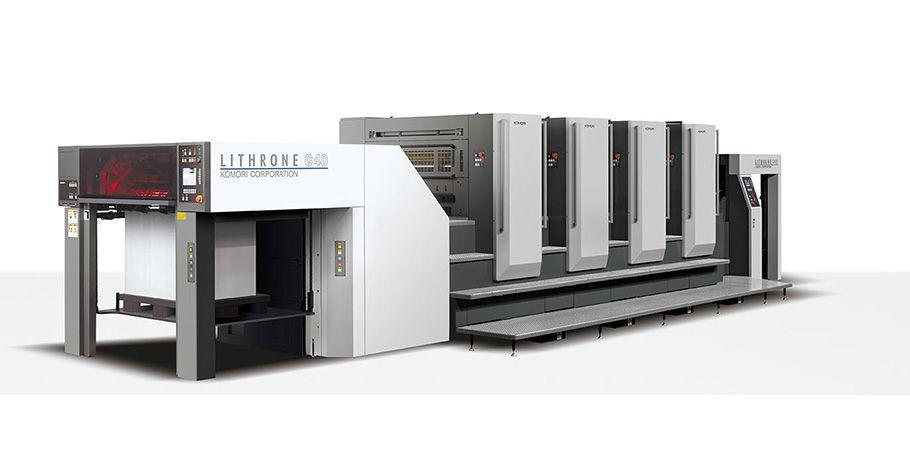

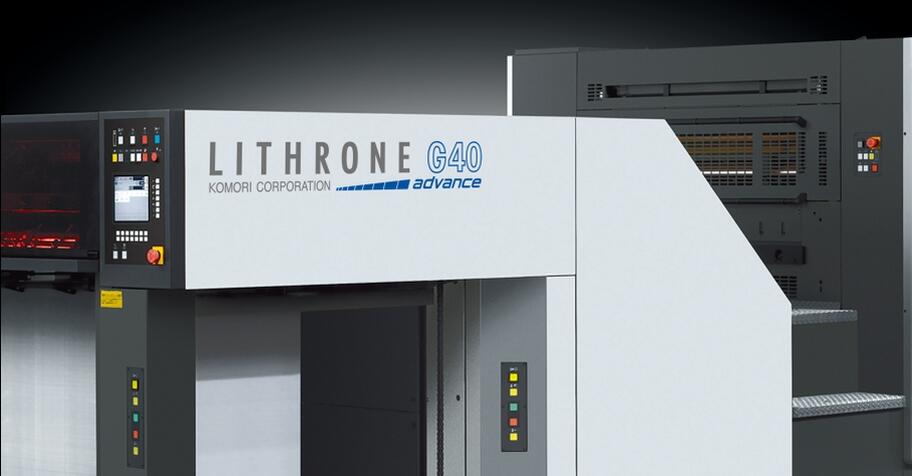

LITHRONE G40 advance

40" Offset Printing Press

Product image for illustration purposes only. Actual product may vary.

Concept

Lithrone G40 advance:
New benchmarks for productivity and sustainability

Boasting a world-class return on investment*1, the Lithrone GX/G advance series is being introduced globally.
To achieve further productivity growth and sustainable management, Komori has developed the Lithrone GX/G advance Series equipped with revolutionary new functions.
By means of three eco-conscious functions*2, the press reduces power consumption by up to 18%*3 while printing and realizes stable feeder and delivery operation to cut wastepaper usage, thus both achieving reduced greenhouse gas emissions and high productivity.
Leveraging the latest printing technology, this latest development from Komori reduces energy costs and enhances operator eciency, propelling businesses to a new heights.
The Lithrone G40 advance delivers high productivity and print quality with easy operation.
Based on the Connected Automation concept, strengthened collaboration and optimization between processes as well as high-level automation with presets based on information from high-end systems are realized, thus contributing to productivity improvement throughout the entire printing process.

*1 ROI (Return on Investment)
*2 Smart Inking Flow, DC blower and e-Mist
*3 Effect of Smart Inking Flow and DC blower together

Features

  • Satisfies all the needs of offset printing presses for the commercial printing and package printing markets.
  • Fast and stable operation for thin papers through heavy stocks at a maximum printing speed of 17,200 sheets per hour.
  • ①Feeder and delivery, ②Komorimatic dampening system, and ③Operating systems were enhanced.
    Promotes high-speed production, along with reduced makeready time, and reduced waste, providing a world-class ROI*1.
  • Using KP-Connect Pro to link prepress, press and postpress, optimizes the overall production process, helping to create smart factories that maximize productivity.
  • Enhanced KID screen layout helps operators move through press functions faster, improving overall work efficiency.
  • An eco-friendly offset printing press with three environmentally responsible press functions*2 that reduce power consumption, paper waste, and greenhouse gas emissions.

*1 ROI (Return on Investment)
*2 Smart Inking Flow, DC blower and e-Mist

Model LITHRONE G40 advance
Max. printing speed sph

17,200

Number of colors

2,4-8

Max. sheet size mm 750×1050
Max. printing area mm 710×1020
Plate size mm 800×1030
Feeder pile height mm 1,110
Delivery pile height mm 1,110

* Maximum printing varies according to printing conditions.
* Performance and numbers may differ from specifications herein. Specifications my also be modified for product improvements.
